Watertight Corrugated Tubing Fittings

Watertight Corrugated Tubing fittings are the fittings of the flexible pipes, which can be either connected with the housing of equipment or connected with electric equipment with inner threaded access hole as per the thread selected. Simply insert the flexible pipe into the union.

Watertight Corrugated Tubing Fittings  Specifications


ProductWatertight Corrugated Tubing fittings
CategoryPlastic Cable Gland
ThreadPG, METRIC,G  Thread
Connector TypeInstallable Straight
Locking System/ Mating StyleScrew
MaterialSealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).
Working termperature:-40 to 100 centigrade in  static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.
CharacteristicsSpecial design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.
IP RatingIP68
StandardUL94 V2
Additional DescriptionWith washer and lock nut
ColorGray, black cable glands are usually in stock . Other colors can be customized on request



Watertight Corrugated Tubing Fittings Parameters and Drawing


Watertight Corrugated Tubing Fittings


The teeth specifications

Apply to SY Wave tube specificationsThread diameter C1 mmLength of thread C2 mmApply to the largest C AL F1PCS
MM12xl,51/4 "1291050
M16xl.55/16"161513
3/8"161516
3/8"161518.3
M20xl.53/8"201516
3/8 "201518.3
1/2"201522
M25xl.51/2"251522
3/4"251526.5
3/4"251528.5
M32xl.51"321534.520
M40 x 1.511/4"40204310
M50xl.5
5015.34310

502249
11/2*502248
M63xl.52"63255510
2"632561
M90x2.03"9025901
PGPG71/4"12.58.51050
PG91/4"15.2910
5/16"15.21013
PG115/16"18.61013
3/8"18.61016
3/8"18.61018.3
PG13.53/8"20.41016
3/8"20.41018.3
PG 163/8"22.51116
3/8"22.51118.3
1/2"22.51022
PG211/2"28.312.522
3/4"28.31226.5
3/4"28.31228.5
PG291"371234.520
PG3611/4"47134310
PG482"59.3165510
2"593166110


Watertight Corrugated Tubing Fittings Details

Watertight Corrugated Tubing Fittings Saichuang
Watertight Corrugated Tubing Fittings Saichuang
Watertight Corrugated Tubing Fittings Saichuang

The waterproof joints produced by SAICHUANG CONNECTOR are well-made, and we pay attention to every detail. The threads are precise and neat, and the edges are smooth. They are easy to use, saving assembly time.

High Quality Watertight Corrugated Tubing Fittings Saichuang
High Quality Watertight Corrugated Tubing Fittings Saichuang
High Quality Watertight Corrugated Tubing Fittings Saichuang

We use high-quality nylon 66 material to produce the waterproof cable glands. The product is anti-aging, strong and durable, and has good waterproof effect. It can be used outdoors.

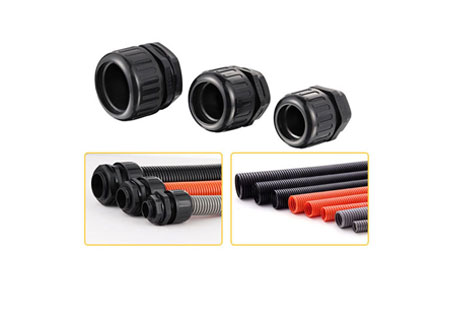

Pg16 Watertight Corrugated Tubing Fittings Saichuang
Pg16 Watertight Corrugated Tubing Fittings Saichuang
Pg16 Watertight Corrugated Tubing Fittings Saichuang

The installation of this connector for flexible pipes is very convenient. No tools are required. It can be easily plugged and installed, and the connection between the pipes and the connector is very tight.

Watertight Corrugated Tubing Fittings M20 Saichuang
Watertight Corrugated Tubing Fittings M20 Saichuang
Watertight Corrugated Tubing Fittings M20 Saichuang

The watertight cord grip is simple to use. It can also protect the wave tube while fixing the wave tube. Tensile resistance, protection grade is IP68.
