Metal Screw Plugs

The metal screw plug is made of high-quality nickel plated brass, which is thick and durable, waterproof and dustproof, acid and alkali resistant.

Metal Screw Plugs
Metal Screw Plugs
Metal Screw Plugs
Metal Screw Plugs PDF

Metal Screw Plugs Specifications


ProductMetal Screw Plug
CategoryBrass Cable Gland
ThreadPG/Metric Thread
Connector TypeInstallable Straight
Locking System/ Mating StyleScrew
MaterialBody is made of nickel plated brass, the O-rings  are made of nitrile butadiene rubber (NBR).

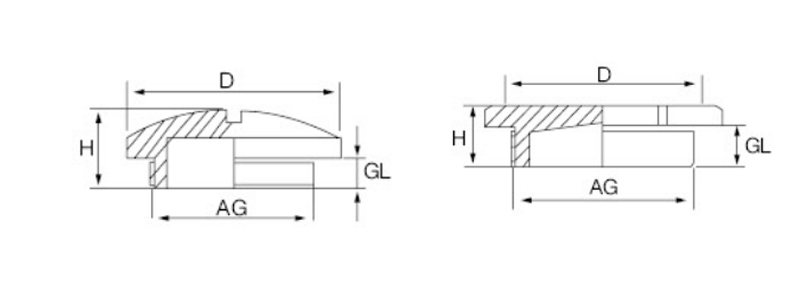

Metal Screw Plugs Parameters and Drawing

Metal Screw Plugs Parameters and Drawing

                                 Round Type                                                         Hexagon Type



Model Thread specification Thread LengthGL ( mm ) Height H ( mm ) Spanner Size ( mm )
SC-PG7PG75814
SC-PG9PG96917
SC-PG11PG116920
SC-PG13.5PG13.56.59.522
SC-PG16PG166.59.524
SC-PG21PG2171130
SC-PG29PG2981240
SC-PG36PG3691550
SC-PG42PG42101657
SC-PG48PG48101664
SC-M8M8xl5812
SC-M10MlOxl5812
SC-M12M12xl.55814
SC-M16M16xl.56917
SC-M18M18xl.56920
SC-M20M20xl.56.59.522
SC-M22M22 x 1.56.59.524
SC-M24M24xl.56.51027
SC-M25M25xl.56.51027
SC-M30M30xl.56.51032
SC-M32M32xl,571135
SC-M36M36xl.581240
SC-M40M40xl,581345
SC-M47M47 x 1.591550
SC-M50M50xl.591555
SC-M54M54xl.5101657
SC-M60M60xl.5101664
SC-M63M63 x 1.5101668
SC-M72M72x2101678


Metal Screw Plugs Details

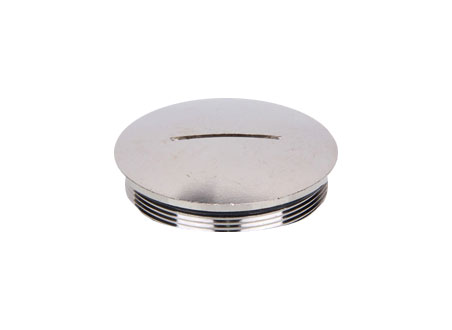

Metal Screw Plug Manufactured By Saichuang 3
Metal Screw Plug Manufactured By Saichuang 3
Metal Screw Plug Manufactured By Saichuang 3

The metal screw plug has good sealing and reliable quality. Easy installation and long service life.

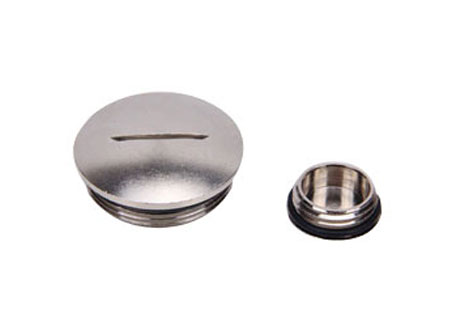

Metal Screw Plug Manufactured By Saichuang 1
Metal Screw Plug Manufactured By Saichuang 1
Metal Screw Plug Manufactured By Saichuang 1

The metal screw plug is used to fill the reserved holes or redundant holes of the equipment to make the overall appearance of the equipment, and achieve the functions of waterproof and dustproof.

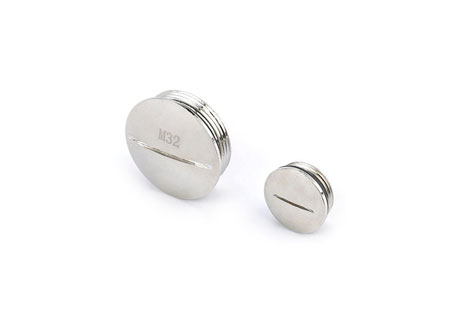

Metal Screw Plug Manufactured By Saichuang 2
Metal Screw Plug Manufactured By Saichuang 2
Metal Screw Plug Manufactured By Saichuang 2

The material of the metal screw plugs is nickel-plated brass, durable and smooth.

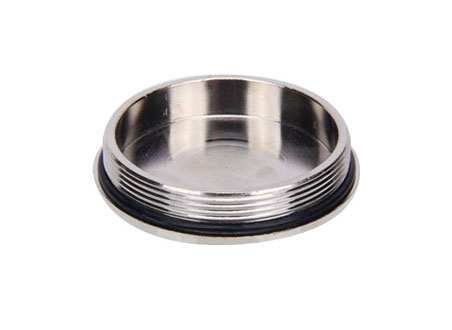

Metal Screw Plug Manufactured By Saichuang 4
Metal Screw Plug Manufactured By Saichuang 4
Metal Screw Plug Manufactured By Saichuang 4

A hexagonal nut can be used according to the installation requirements.

  • If the mounting hole has internal threads, you can directly tighten the metal screw plug.

  • If the mounting hole has no internal thread, it needs to be used with a hexagonal nut(lock-nut).
