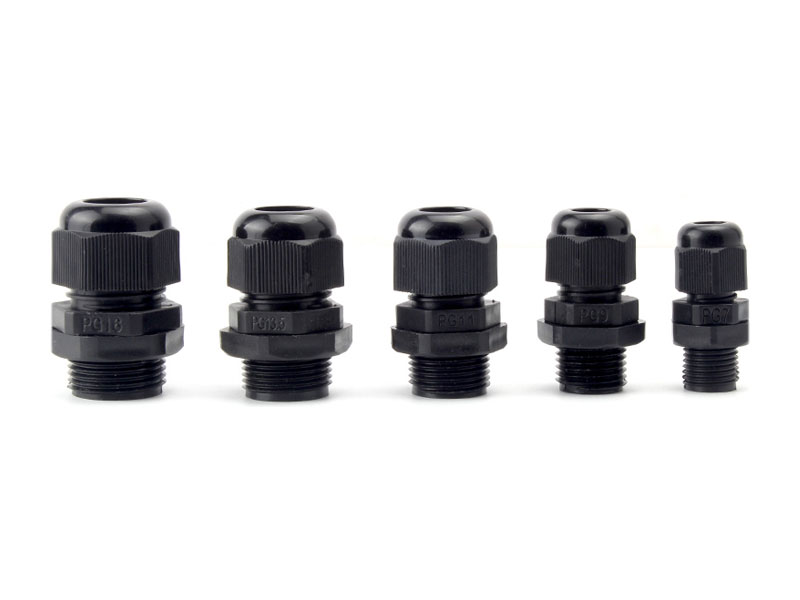

Plastic Cable Gland Long Thread PG

The thread length of the extended cable gland is 15mm, which is suitable for relatively thick distribution boxes or electrical panels. Our cable gland long thread is made of PA66 material and can be waterproof and dustproof.

Plastic Cable Gland Long Thread PG
Plastic Cable Gland Long Thread PG
Plastic Cable Gland Long Thread PG
Plastic Cable Gland Long Thread PG PDF

Plastic Cable Gland Long Thread  PG Specifications



ProductPG PLASTIC CABLE GLAND LONG THREAD
CategoryPlastic Cable Gland
ThreadPG  Thread
Connector TypeInstallable Straight
Locking System/ Mating StyleScrew
MaterialSealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).
Working termperature:-40 to 100 centigrade in  static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.
CharacteristicsSpecial design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.
IP RatingIPX7
StandardUL94 V2
Additional DescriptionWith washer and lock nut
ColorGray, black cable glands are usually in stock . Other colors can be customized on request




Plastic Cable Gland Long Thread  PG Parameters and Drawing


Plastic Cable Gland Long Thread PG


ModelThread SizeCable Range (mm)Thread OD L2(mm)Thread Length L1 (mm)Spanner Size A & E (mm)Qty/bag
PG7-LPG73 ~ 6.512.51518/16100
PG7-LPG72-512.51518/16100
PG9-LPG94 ~ 815.21522/19100
PG9-LPG92 ~ 615.21522/19100
PG11-LPG115 ~ 1018.61524/22100
PG11-LPG113 ~ 718.61524/22100
PG13.5-LPG13.56 ~ 1120.41527/24100
PG13.5-LPG13.55-920.41527/24100
PG16-LPG1610 ~ 1322.51530/27100
PG16-LPG167-1222.51530/27100
PG19-LPG1912 - 15241530/28100
PG19-LPG1910 ~ 12241530/28100
PG21-LPG2113 ~ 1828.31535/33100
PG21-LPG219 ~ 1628.31535/33100
PG25-LPG2516 ~ 21301537/3550
PG25-LPG2513 ~ 18301537/3550
PG29-LPG2918 ~ 25371545/4250
PG29-LPG2913 ~ 20371545/4250
PG36-LPG3622 ~ 32471558/5220
PG36-LPG3620 ~ 26471858/5220
PG42-LPG4232 ~ 38542062/5820
PG42-LPG4225 ~ 31542062/5820
PG48-LPG4837-4459.32070/6420
PG48-LPG4829 ~ 3559.32070/6420


Plastic Cable Gland Long Thread PG Details

Lock Nut Of Pg Thread Cable Gland Saichuang
Lock Nut Of Pg Thread Cable Gland Saichuang
Lock Nut Of Pg Thread Cable Gland Saichuang

The lock nuts are strictly manufactured. The surface is neat and smooth, no burrs, and the threads are neat and clear, which ensures the tightness and fixability of the cable gland.

Plastic Waterproof Cable Gland Pg Long Thread Saichuange Supply
Plastic Waterproof Cable Gland Pg Long Thread Saichuange Supply
Plastic Waterproof Cable Gland Pg Long Thread Saichuange Supply

The thread length of the extended cable gland is longer than that of the conventional type, so that it can be installed on a thicker panel.

Plastic Waterproof Cable Gland Pg Long Thread Saichuang Manufacturer
Plastic Waterproof Cable Gland Pg Long Thread Saichuang Manufacturer
Plastic Waterproof Cable Gland Pg Long Thread Saichuang Manufacturer

This long-thread cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.

Sealing Nut Of Pg Thread Cable Gland Saichuang
Sealing Nut Of Pg Thread Cable Gland Saichuang
Sealing Nut Of Pg Thread Cable Gland Saichuang

The thread of the waterproof cable gland is clear, the sealing nut is strong and waterproof, and the insulation effect is good.
