The PG cable glands with different PG cable gland sizes can be used for cable installation of various electrical products such as distribution boards, mechanical control boxes, digital display panels, automatic control system, electrical installations, solar power generation systems, telecommunications and network communications, surveillance systems, audio-visual system, LED lighting equipment, traffic signs, etc. The product specification is as follows.
| Working temperature: | -40 to 100 centigrade in static state, instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in a dynamic state, instantaneous heat resistance up to 100 centigrade. |
| Characteristics | The special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease, and general solvent. |
| IP Rating | IPX7 |
| Standard | UL94 V2 |
| Additional Description | With washer and lock nut |
| Color | Gray, black cable glands are usually in stock. Other colors can be customized on request |
| Model | Thread Size | Cable Range (mm) | Thread O.D. L2 (mm) | Thread Length LI (mm) | Spanner Size A & E (mm) | Qty/bag |
| PG7B | PG7 | 4 - 6.8 | 12.5 | 8 | 17/15 | 100 |
| PG7B | PG7 | 3 - 5.5 | 12.5 | 8 | 17/15 | 100 |
| PG9B | PG9 | 5 - 8 | 15.2 | 9 | 22/19 | 100 |
| PG9B | PG9 | 3 - 5.5 | 15.2 | 9 | 22/19 | 100 |
| PG11B | PG11 | 5 -10 | 18.6 | 9 | 24/22 | 100 |
| PG11B | PG11 | 4 - 7 | 18.6 | 9 | 24/22 | 100 |
| PG13.5B | PG13.5 | 7 - 12.5 | 20.4 | 10 | 27/24 | 100 |
| PG13.5B | PG13.5 | 5 - 9 | 20.4 | 10 | 27/24 | 100 |
| PG16B | PG16 | 8.5 - 14 | 22.5 | 10 | 30/27 | 100 |
| PG16B | PG16 | 7 - 11 | 22.5 | 10 | 30/27 | 100 |
| PG21B | PG21 | 14 -18 | 28.3 | 12 | 36/33 | 100 |
| PG21B | PG21 | 12 - 16 | 28.3 | 12 | 36/33 | 100 |
| PG29B | PG29 | 18 -25 | 37 | 15 | 46/42 | 50 |
| PG29B | PG29 | 16 - 22 | 37 | 15 | 46/42 | 50 |
| PG36B | PG36 | 24 -32 | 47 | 15 | 57/52 | 20 |
| PG36B | PG36 | 21 - 26 | 47 | 15 | 57/52 | 20 |
| PG42B | PG42 | 31 -41 | 54 | 16 | 64/62 | 20 |
| PG42B | PG42 | 26 - 32 | 54 | 16 | 64/62 | 20 |
| PG48B | PG48 | 35 - 45 | 59.3 | 16 | 70/65 | 20 |
| PG48B | PG48 | 30 - 38 | 59.3 | 16 | 70/65 | 20 |
Chamfer design prevents slippage
There is horizontal design for the seal of the large-size cable glands , which help to achieve best performance to fix the cable.
Material of the seal is specifically thickened nitrile rubber, and it has very good sealing effect
Material of the washer is environmentally friendly.

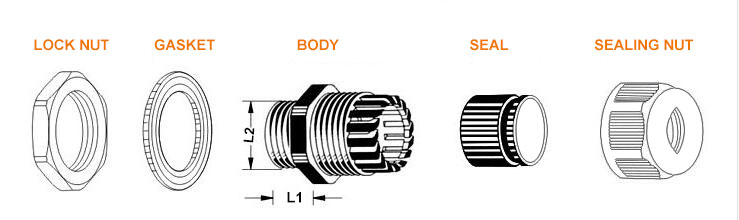

A complete cable gland consists of 5 parts-sealing nut, seal, body, washer, lock nuts.

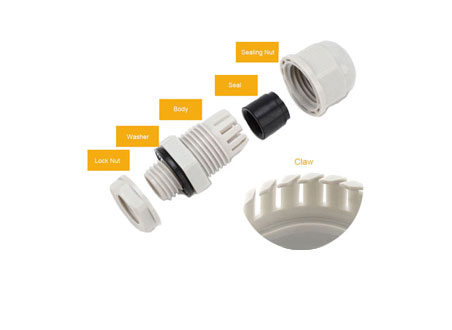

Spiral hook type clamping claw, specially designed to prevent cable movement and ensure the waterproof performance.
Our superb production process makes the surface of the sealing nut smooth and delicate, and the internal thread is neat and clear. The design of bottom slot line can improve the waterproof performance.
