Right Angle Quick Connector For Flexible Pipes

Right angle connector is a professional item for the pipe system when the pipe and the equipment are fixed at the bend. The elbow is a pipe fitting that changes the direction of the pipe. The installation method is straightly plug-in. The installation is simple, convenient and efficient.

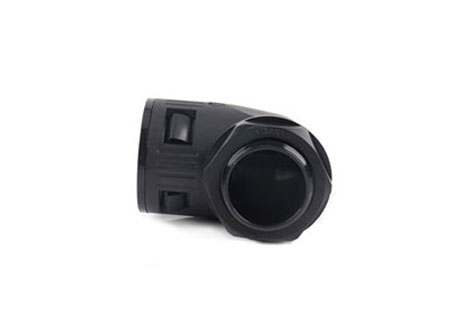

Right Angle Quick Connector For Flexible Pipes

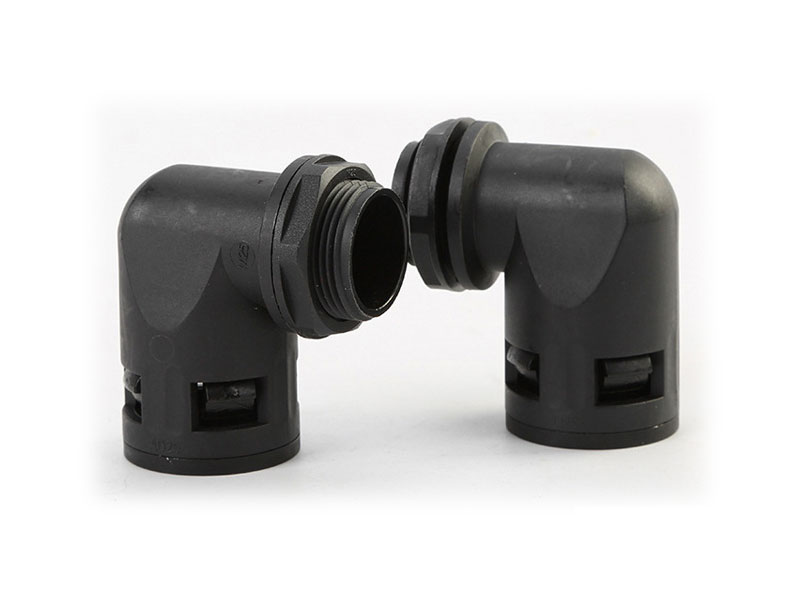

Right Angle Quick Connector For Flexible Pipes
Right Angle Quick Connector For Flexible Pipes


Right Angle Quick Connector For Flexible Pipes Specifications


ProductRight Angle Quick Connector for Flexible Pipes
CategoryPlastic Cable Gland
ThreadPG/Metric/G Thread
Connector TypeInstallable Straight
Locking System/ Mating StyleScrew
MaterialSealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).
Working termperature:-40 to 100 centigrade in  static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.
CharacteristicsSpecial design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.
IP Rating
StandardUL94 V2
Additional DescriptionWith washer and lock nut
ColorGray, black cable glands are usually in stock . Other colors can be customized on request

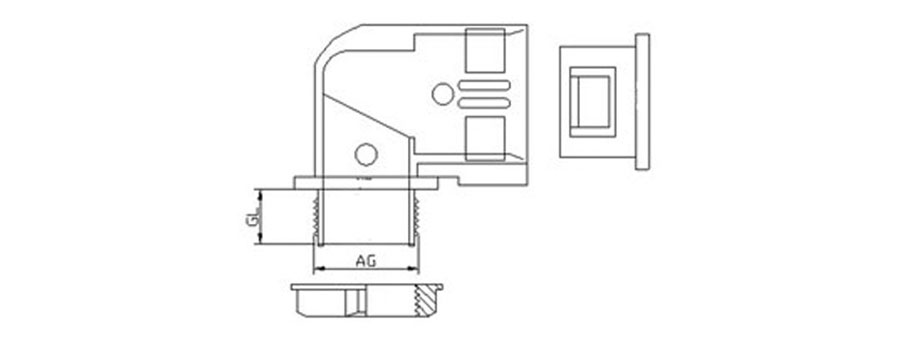

Right Angle Quick Connector For Flexible Pipes Parameters and Drawing


Right Angle Quick Connector For Flexible Pipes 90


Accommodated PipesItem No.ThreadThread O.D. AG(mm)Thread Length GL(mm)
AD10.0M12-10M12X1.5128.5
AD13.0M16-13M16X1.51610
M18-13M18X1.51610
M20-13M20X1.52010
AD15.8M16-15.8M16X1.51610
M18-15.8M18X1.51812.5
M20-15.8M20X1.52012.5
AD18.5M20-18.5M20X1.52012.5
AD21.2M20-21.2M20X1.52013
M24-21.2M24X1.52413
M25-21.2M25X1.52513
AD25.0M25-25M25X1.52513
AD28.5M25-28.5M25X1.52513
M27-28.5M27X1.52713
AD28.5M30-28.5M30X1.53013
M32-28.5M32X1.53213

M32-34.5M32X1.53214
AD34.5M36-34.5M36X1.53614

M40-34.5M40X1.54014
AD42.5M40-42.5M40X1.54015
M48-42.5M48X1.54815
AD54.5M50-54.5M50X1.55016
M63-54.5M63X1.56316
AD10PG7-10PG712.48.5
AD13PG9-13PG915.210
AD15.8PG11-15.8PG1118.412.5
AD18.5PG13.5-18.5PG13.520.412.5
AD21.2PG16-21.2PG1622.513
AD25PG21-25PG2128.313
AD28.5PG21-28.5PG2128.313
AD34.5PG29-34.5PG293714
AD42.5PG36-42.5PG364715
AD54.5PG42-54.5PG425416
PG48-54.5PG4859.316
AD10G1/4-10G1/4H13.18.5
AD13G3/8-13G3/8"16.610
AD15.8G1/2-15.8G1/2"20.912.5
AD18.5G1/2-18.5G1/2'20.912.5
AD21.2G1/2-21.2G1/2"20.913
AD25G3/4-25G3/4"26.413
AD28.5G3/4-28.5G3/41'26.413
AD34.5 AD42.5G1-34.5G1*33.214
G1 1/4-42.5G1 1/4"41.915
AD54.5G1 1/2-54.5G 1 1/2"4816
G2-54.5G2・6016


Right Angle Quick Connector For Flexible Pipes Details

Right Angle Quick Connector For Flexible Pipes 1
Right Angle Quick Connector For Flexible Pipes 1
Right Angle Quick Connector For Flexible Pipes 1

The right angle quick connector for flexible pipes are reasonable, ingenious craftsmanship, produced with good raw materials, not easy to deform.

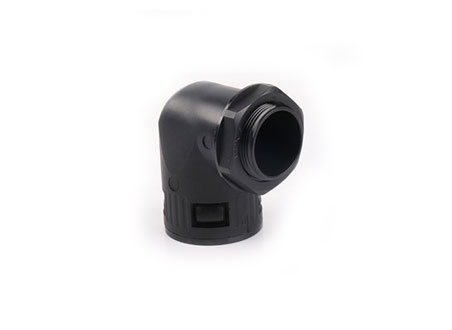

Right Angle Quick Connector For Flexible Pipes 2
Right Angle Quick Connector For Flexible Pipes 2
Right Angle Quick Connector For Flexible Pipes 2

The right angle coax connector has stable connection. No pores, high strength, clear threads, lustrous texture and long service life.

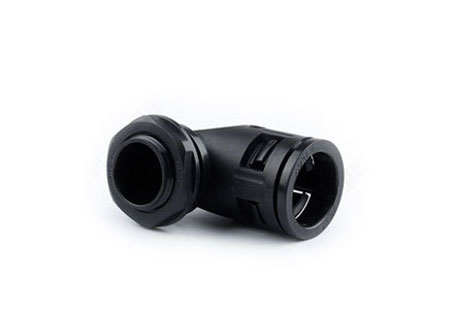

Right Angle Quick Connector For Flexible Pipes 3
Right Angle Quick Connector For Flexible Pipes 3
Right Angle Quick Connector For Flexible Pipes 3

Product specifications are rich, and customization is supported. For more product information, please feel free to contact us.

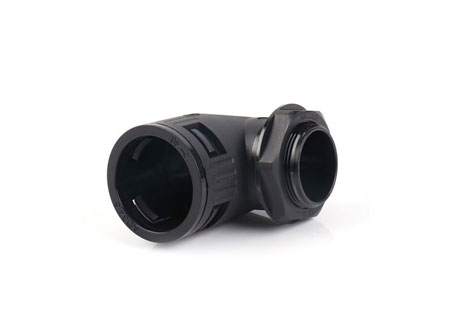

Right Angle Quick Connector For Flexible Pipes 4
Right Angle Quick Connector For Flexible Pipes 4
Right Angle Quick Connector For Flexible Pipes 4

The buckle part is made of high-quality engineering plastic. It can withstand pressure and does not trip. Quality is reliable and  installation is convenient.
