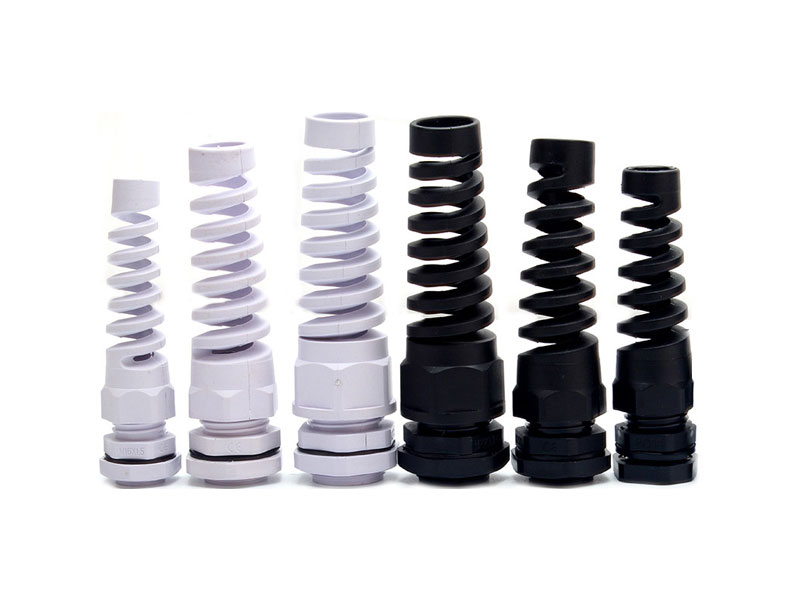

Spiral Nylon Cable Gland

The spiral cable gland is made of nylon 66 material, UL approved. The end of the cable gland is designed with a torsion-proof wire protection sleeve. It can protect the cable so that the cable is not easy to be damaged.

Spiral Nylon Cable Gland  Specifications


ProductSPIRAL NYLON CABLE GLANDS
CategoryPlastic Cable Gland
ThreadPG & Metric Thread
Connector TypeInstallable Straight
Locking System/ Mating StyleScrew
MaterialSealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).
Working termperature:-40 to 100 centigrade in  static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.
CharacteristicsSpecial design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.
IP RatingIPX7
StandardUL94 V2
Additional DescriptionWith washer and lock nut
ColorGray, black cable glands are usually in stock . Other colors can be customized on request

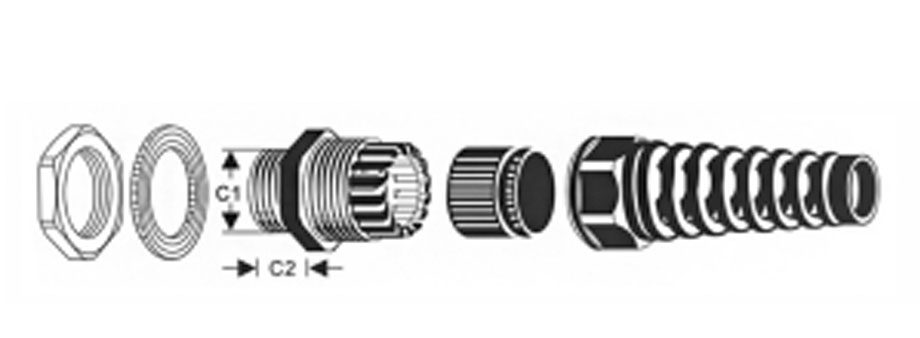

Spiral Nylon Cable Gland Parameters and Drawing


Spiral Nylon Cable Gland


ModelThread SizeCable Range (mm)Thread OD C1 (mm)Thread Length C2 (mm)Spanner Size A & E (mm)Qty/bag
PG7-RPG73 ~ 6.512.5918/16100
PG7-RPG72 ~ 512.5918/16100
PG9-RPG94 ~ 815.2922/19100
PG9-RPG92 ~ 615.2922/19100
PG11-RPG115 ~ 1018.6924/22100
PG11-RPG113 ~ 718.6924/22100
PG13.5-RPG13.56 ~ 1220.41027/2450
PG13.5-RPG13.55 ~ 920.41027/2450
PG16-RPG1610 ~ 1422.51030/2750
PG16-RPG167-1222.51030/2750
PG21-RPG2113 ~ 182831235/3350
PG21-RPG219 ~ 162831235/3350







M12-RM12xl.53 ~ 6.512918/16100
M12-RM12xl.52 ~ 512918/16100
M16-RM16xl.54 ~ 816922/19100
M16-RM16xl.52 ~ 616922/19100
M18-RM18xl.55 ~ 1018924/22100
M18-RM18xl.53 ~ 718924/22100
M20-RM20xl.56 ~ 12201027/2450
M20-RM20xl.55 ~ 9201027/2450
M22-RM22xl.510 ~ 14221030/2750
M22-RM22xl.57-12221030/2750
M25-RM25xl.513 ~ 18251235/3350
M25-RM25xl.59 ~ 16251235/3350
M27-RM27xl.513 ~ 18271235/3350
M27-RM27xl.59-16271235/3350


Spiral Nylon Cable Gland Details

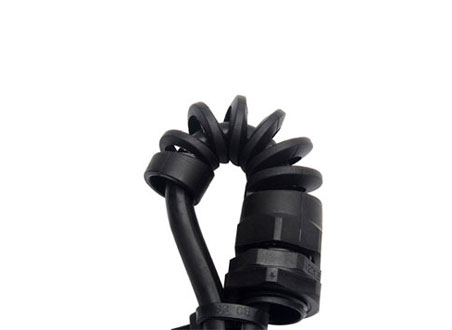

Spiral Type Nylon Cable Glands Saichuang Supply
Spiral Type Nylon Cable Glands Saichuang Supply
Spiral Type Nylon Cable Glands Saichuang Supply

The Spiral Cable Gland has a torsion-proof spring wire protector at the end, which is flexible and not easy to break. It can protect the cable from bending and damage.

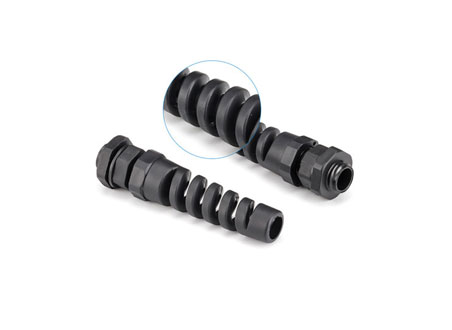

High Quality Spiral Plastic Cable Gland Saichuang
High Quality Spiral Plastic Cable Gland Saichuang
High Quality Spiral Plastic Cable Gland Saichuang

The spiral cable gland is made of high-quality nylon 66. The product is durable and has a smooth surface without burrs. It is easy to install and use.

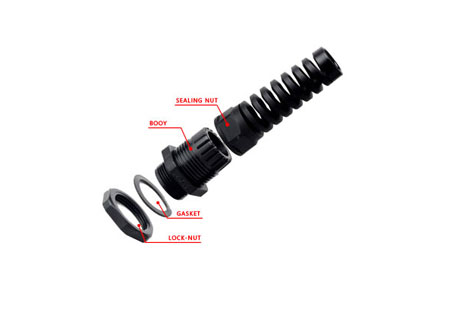

Spiral Cable Connector Saichuang Supply
Spiral Cable Connector Saichuang Supply
Spiral Cable Connector Saichuang Supply

The spiral type cable gland is composed of four parts, sealing nut, body, gasket, and lock nut. The four parts are combined to achieve the function of waterproof, dustproof and installation of cables.

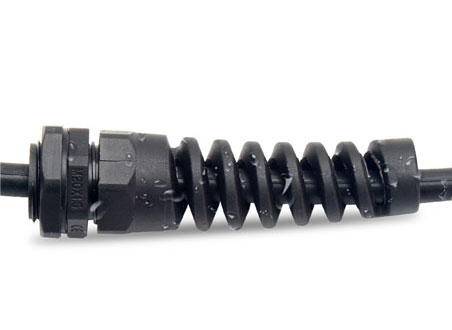

Waterproof Spiral Nylon Cable Glands Saichuang Supply
Waterproof Spiral Nylon Cable Glands Saichuang Supply
Waterproof Spiral Nylon Cable Glands Saichuang Supply

This waterproof cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.
